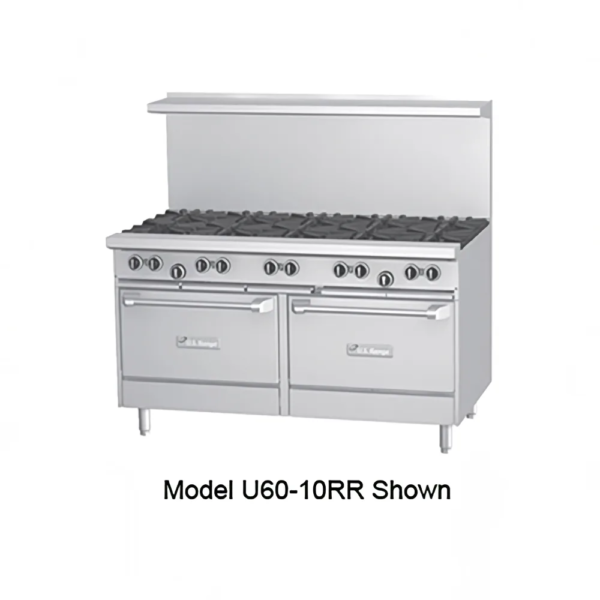

Sunfire® Restaurant Range, gas, 60″, (10) 30,000 BTU open burners, with cast iron top & ring grates, (2) standard oven with 2 position rack guides with oven rack each, stainless steel front, sides, plate rail, backguard, & high shelf, 6″ steel core legs, 366,000 BTU, NSF, CSA
- Pressure regulator, 1″ NPT
- Stainless steel front and sides
- Durable easy to read control knobs
- Stainless steel 4″ (102mm) plate rail
- Large 27″ (686mm) work top surface
- Easy to clean 6″ (152mm) steel core, injection molded legs
- 12″ (305mm) section stamped drip trays w/ dimpled bottom
- Stainless steel backguard w/ removable stainless steel shelf
Standard on Applicable Models:
- 4-1/4″ (108mm) wide grease trough
- Ergonomic split cast iron top ring grates
- Heavy duty oven door w/ keep-cool handle
- Oven thermostat w/ Low to 500° F (260° C)
- Griddle plates only available on right side of range
- Straight steel tube oven burner 33,000 Btuh/9.67 kW
- Nickel plated oven rack with two fixed position oven rack guides
- 5/8″ (15mm) thick steel griddle plate w/manual hi/lo valve control
- 30,000 Btuh/ 8.79 kW 2 piece cast iron “Q” style donut open burner
- Open storage base in lieu of one oven, models X-60-10RS & X60-6G24RS
- 18,000 Btuh/5.27 kW cast iron “H” style griddle burner per 12″(305mm) width of griddle
- Standard size Sunfire oven with ribbed porcelain oven bottom and door interior, aluminized top, sides and back; RR models 2 ovens, RS models one oven
Optional Features:
- Additional oven racks
- Celsius temperature dials
- 6” (152mm) swivel casters (4), with front locking
- Low profile 9-3/8″” (238mm) backguard stainless steel front and sides
Specifications:
Gas restaurant series range with 2 standard size Sunfire ovens. 59-1/16″ (1500mm) wide with a 27″ (686mm) deep work top surface. Stainless steel front, sides and 4″(102mm) wide front rail. 6″ (152mm) legs with adjustable feet. Ten robust 2 piece 30,000 Btuh/8.797 kW (Natural gas), cast open burners set in split cast iron ergonomic grates. Griddle on applicable models with cast iron “H” style burners, 18,000 Btuh/5.27 kW (natural gas), in lieu of open burners. Porcelain oven bottom and door liner. Two position fixed rack guide w/one oven rack. Heavy duty oven door with “keep cool” door handle. Straight steel tube oven burner 33,000 Btuh/9.67 kW (natural gas) provides quality bake and good recovery. Oven thermostat ranges from Low to 500° F (260° C). Available with open storage base in lieu of oven on 24 inch griddle model. Gas input ratings shown for installations up to 2000 ft.,(610m) above sea level. Please specify altitudes over 2000 ft. Note: Installation clearance reductions are applicable only where local codes permit. This product is not approved for residential use. NOTE: Ranges supplied with casters must be installed with an approved restraining device.
